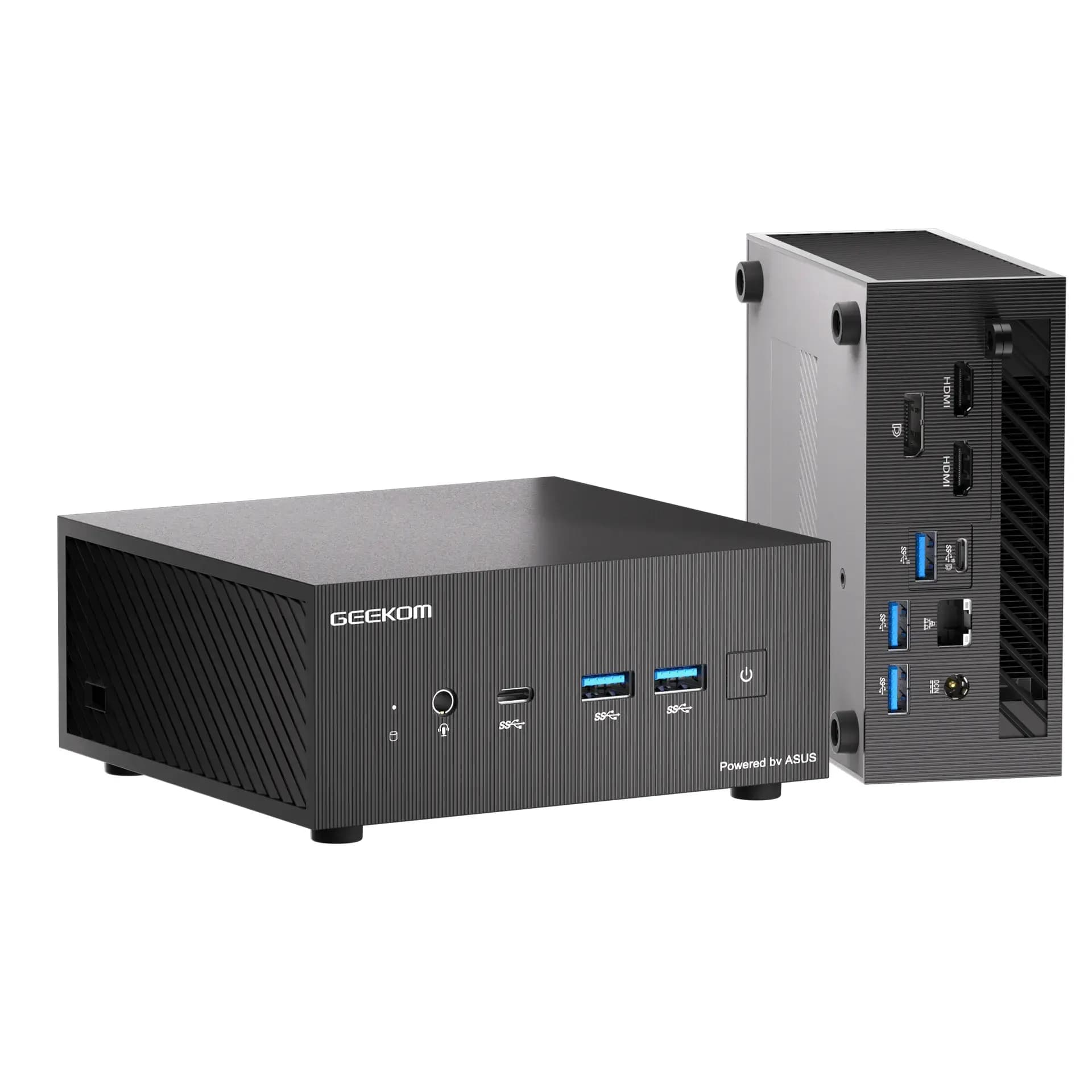

GEEKOM AS 5 Mini PC AMD Ryzen™ 9 5900HX

  • AMD Ryzen™ 9 5900HX
  • AMD Radeon™ Vega 8 Graphics
  • Quad-4K displays support and 8K UHD support
  • Up to 64 GB DDR4 RAM, 1TB M.2 SSD
  • Integrated Wi-Fi 6E and Bluetooth 5.2

Click here to learn more about GEEKOM A7 >>>

This product is currently out of stock and unavailable.

  ... people are viewing this right now

GEEKOM AS 5 Mini PC AMD Ryzen™ 9 5900HX
GEEKOM AS 5
Work Smarter, Go Further.
GEEKOM AS 5
Work Smarter, Go Further.
8 Cores, 16 Threads, 16MB Cache
AMD Radeon™ Vega 8 Graphics
1TB PCIe 3.0
High-speed SSD
32GB
DDR4 memory
Feature-rich ports
2.5G LAN
Superfast wired transmission
WiFi 6E & Bluetooth 5.2
High-speed wireless transmission
Different displays on multiple screens Supports up to 8K resolution
Newly designed heat sink module
Built-in dual heat pipes
8 Cores, 16 Threads, 16MB Cache
AMD Radeon™
Vega 8 Graphics
Different displays on multiple screens Supports up to 8K resolution
AMD Radeon™
Vega 8 Graphics

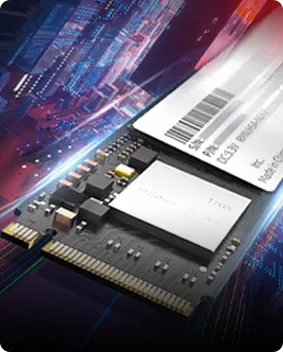

1TB PCIe 3.0
High-speed SSD
32GB
DDR4 memory
2.5G LAN Superfast wired
transmission
Newly designed heat sink module
Built-indual heat pipes
WiFi 6E & Bluetooth 5.2 High-speed wireless transmission

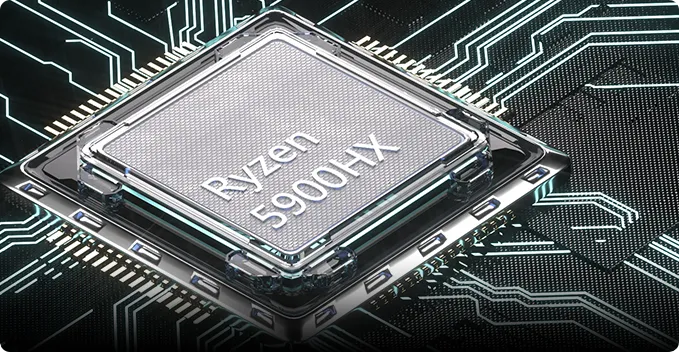

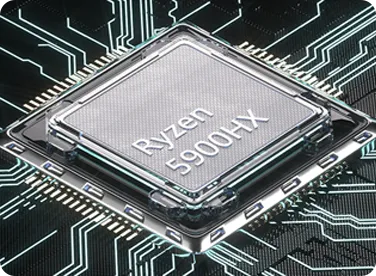

Ryzen™ 9 5900HX Processor
8 Cores CPU Cores
16MB Cache L3 Cache
16 Threads Threads
35W AMD Configurable TDP (cTDP)
3.3 GHz Base Clock
Zen 3 Core Architecture
Up to 4.6 GHz Max. Boost Clock
7nm FinFET Processor Technology
for CPU Cores

The data were obtained from the GEEKOM’s laboratory simulation test and may vary depending on how the device is used.

Experience fast, fluid Visuals.

GEEKOM AS 5 now boasts the AMD Radeon™ Vega 8 Graphics, giving you optimized experience for video streaming, and other intensive tasks.

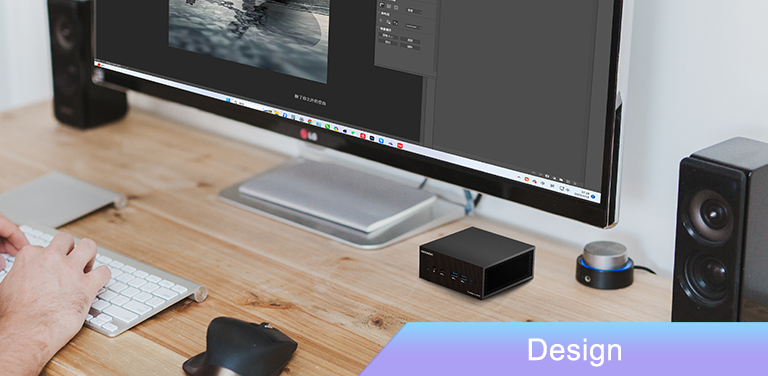

Design Meet your daily design needs.
Game Smooth gameplay in simple titles
like League of Legends and Dota 2
Video 8K/4K UHD movies
Visualization Streaming/Presentation

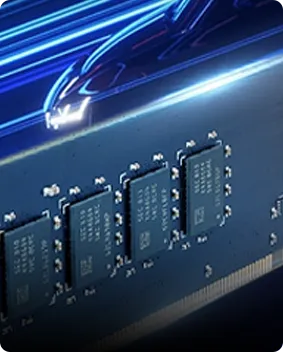

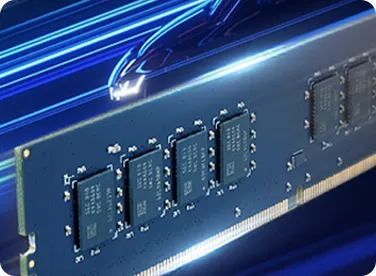

Fast memory and a hard disk make multitasking a breeze.

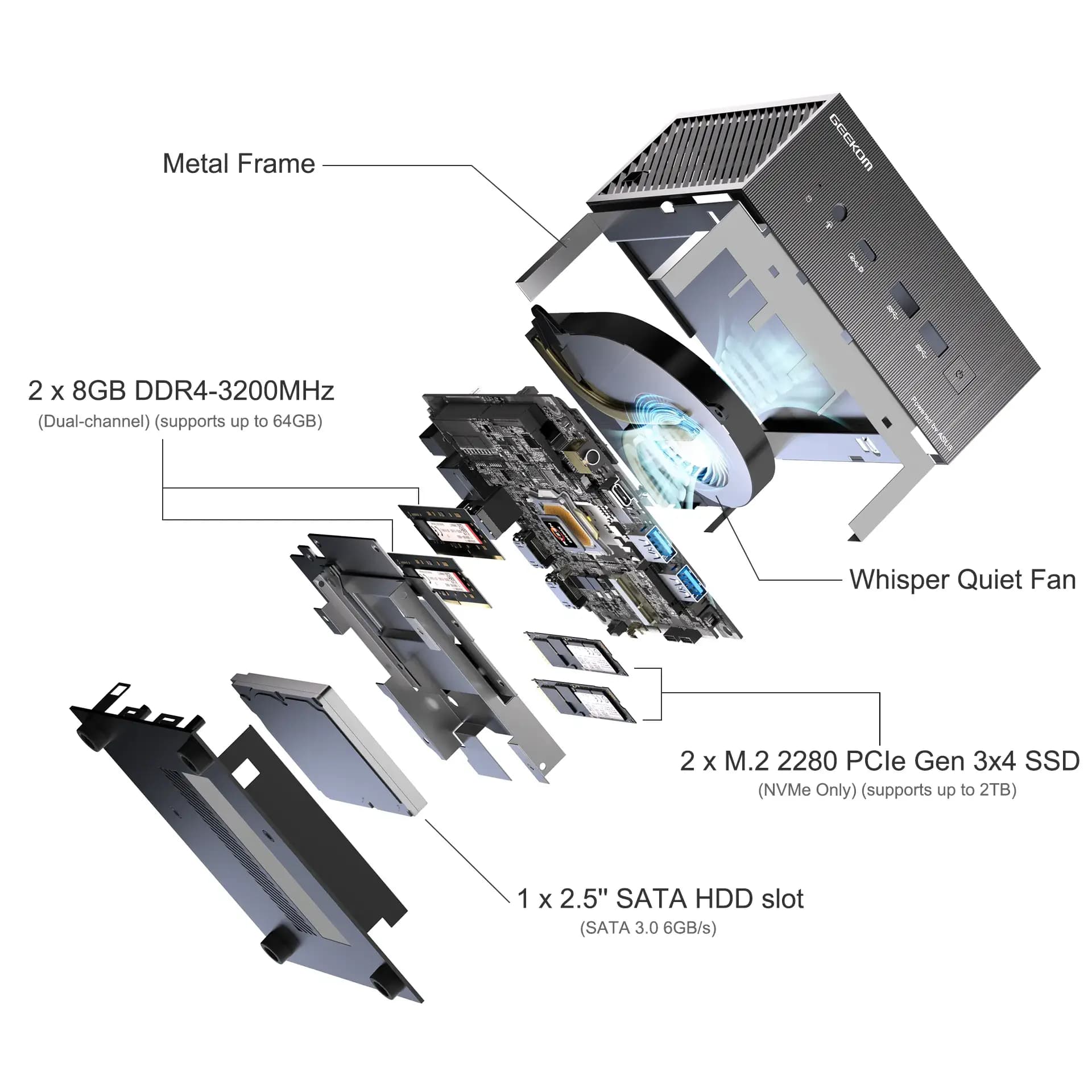

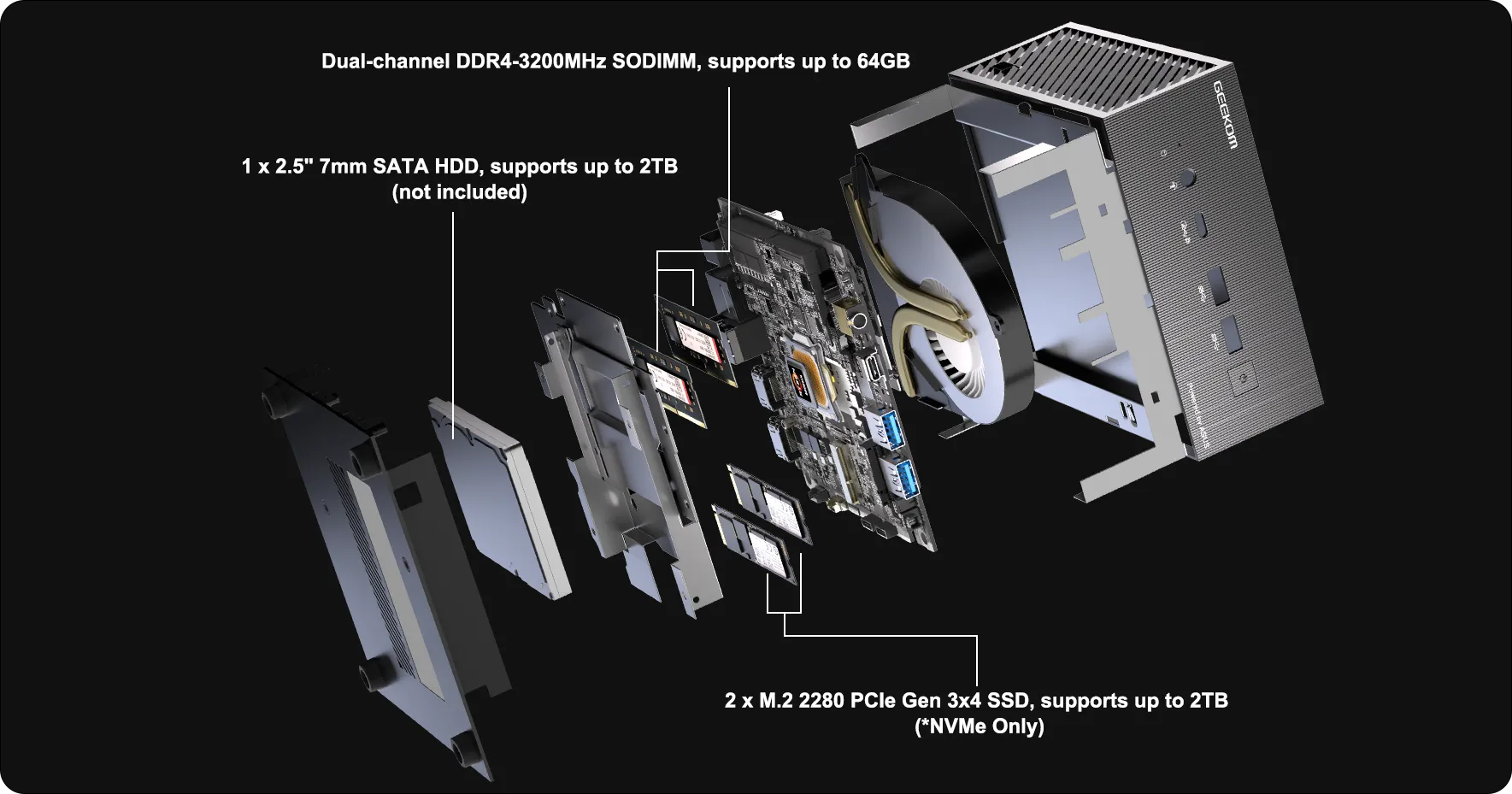

AS 5 features dual-channel DDR4 memory, two M.2 SSDs, and one 2.5″ HDD, allowing you to create a custom storage solution that balances speed and capacity to suit your needs.

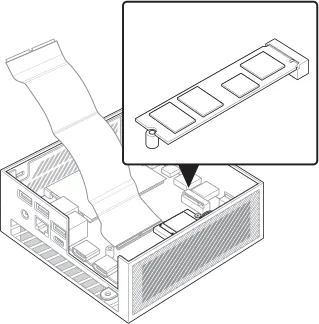

More customizable expansion options.
1. Remove the back cover
2. Install storage
3. Install memory

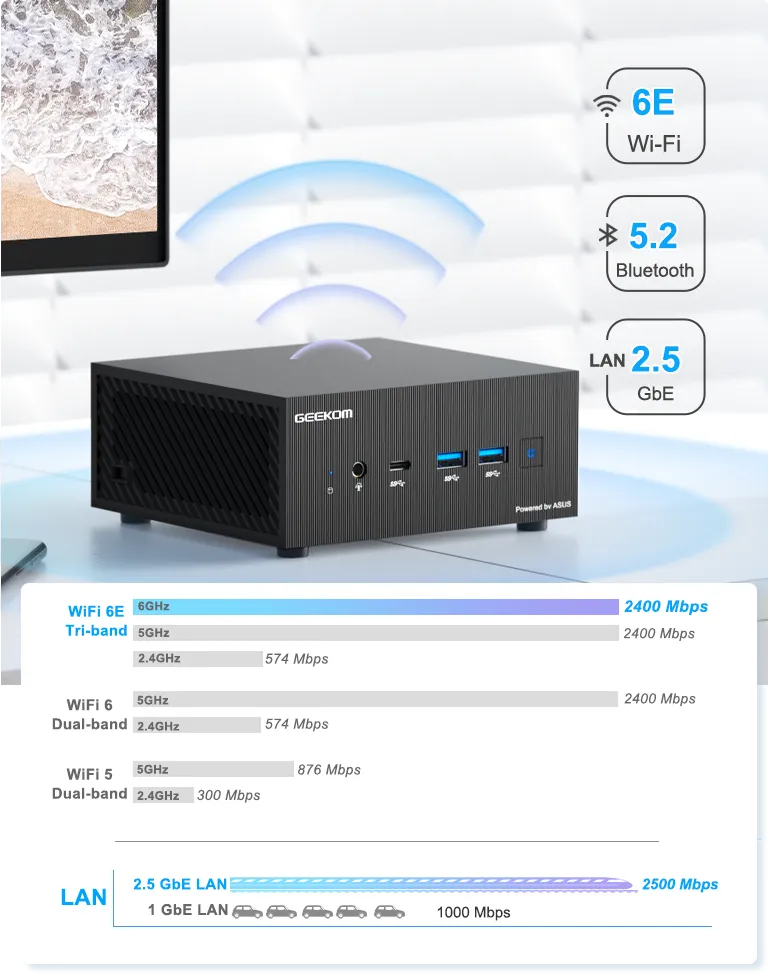

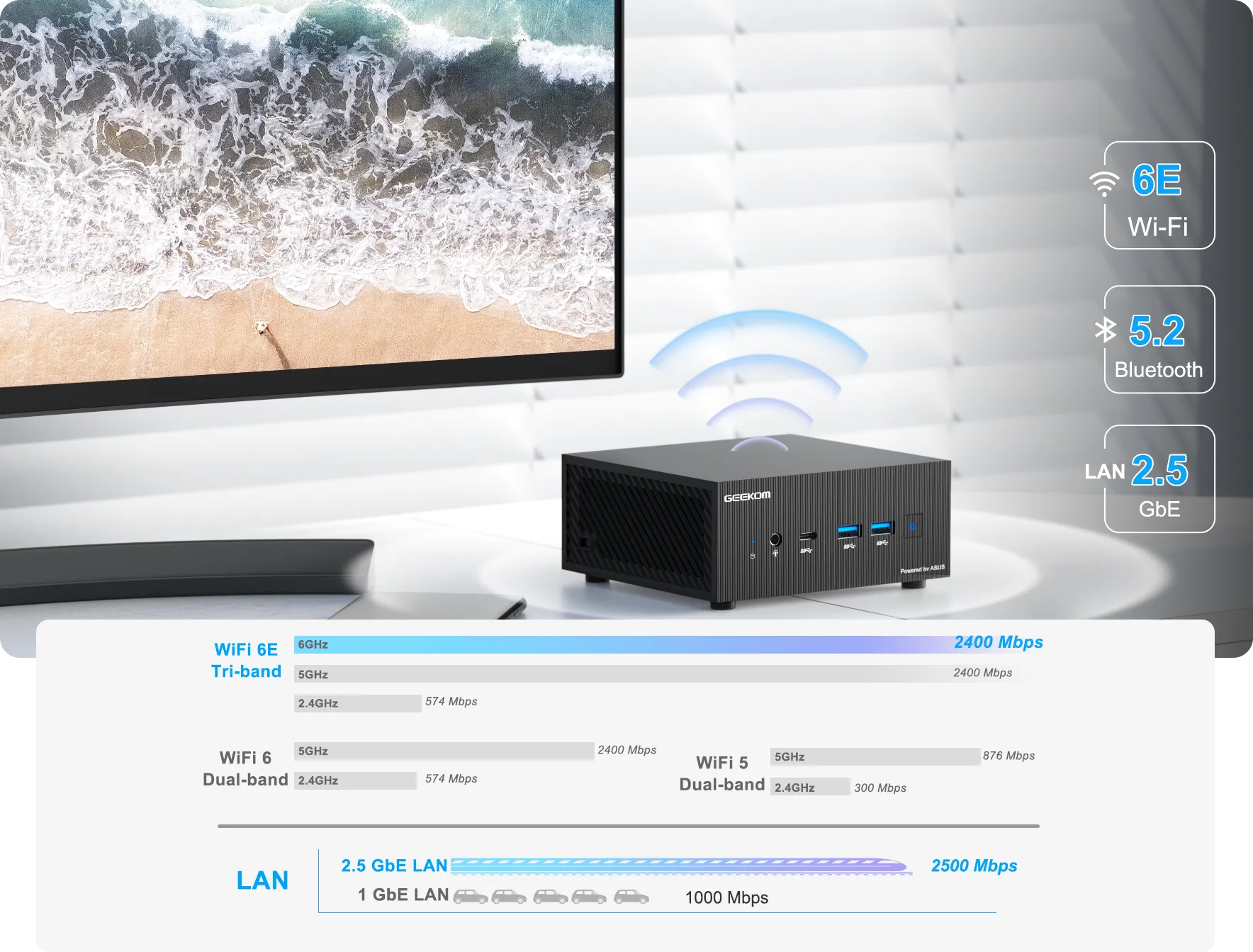

Blazing-fast wired and wireless connectivity.

The AS 5, with its AMD WiFi 6E, Bluetooth 5.2, and 2.5GbE LAN port, allows more devices to connect in congested environments, reducing latency and ensuring smooth video streaming or conferencing, providing lightning fast networking and data transfer speeds for efficient multitasking.

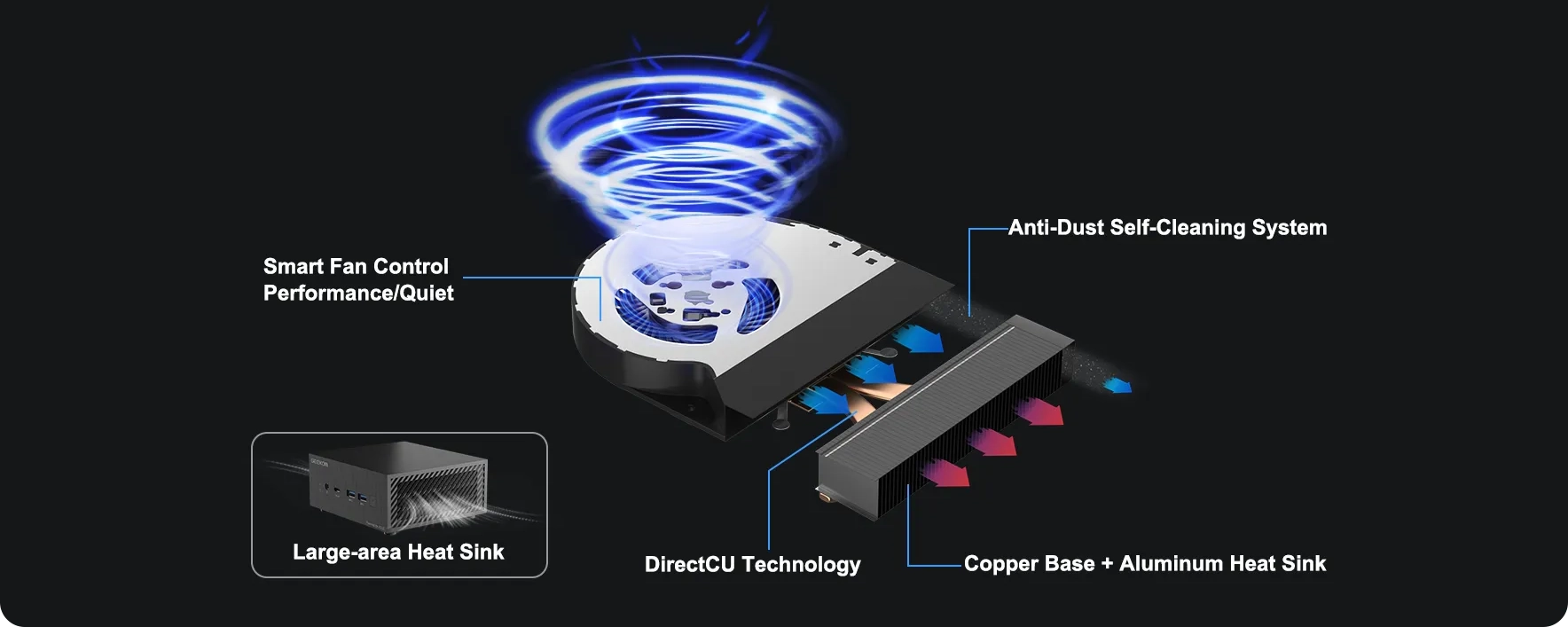

An innovative cooling system boots performance.

A new thermal module featuring a special heat pipe provides improved heat dissipation, while an aluminum heatsink ensures enhanced conductivity, allowing the compact AS 5 to deliver desktop-level performance.

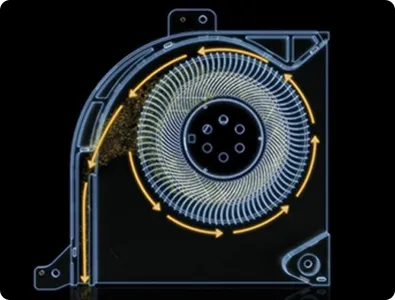

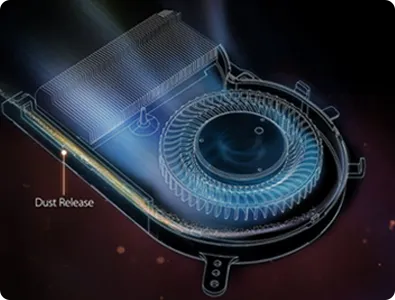

Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean but also efficiently ejects dust and other particles to prolong the system’s lifespan. Furthertmore, the fan is never overworked, resulting in a quieter workstation with less noise.

Eco-friendly & Whisper-quiet

This ENERGY STAR® certified tiny machine produces less than 35 decibels of noise when fully loaded, making it ideal for gaming, working in the office, or entertaining at home for an excellent experience.

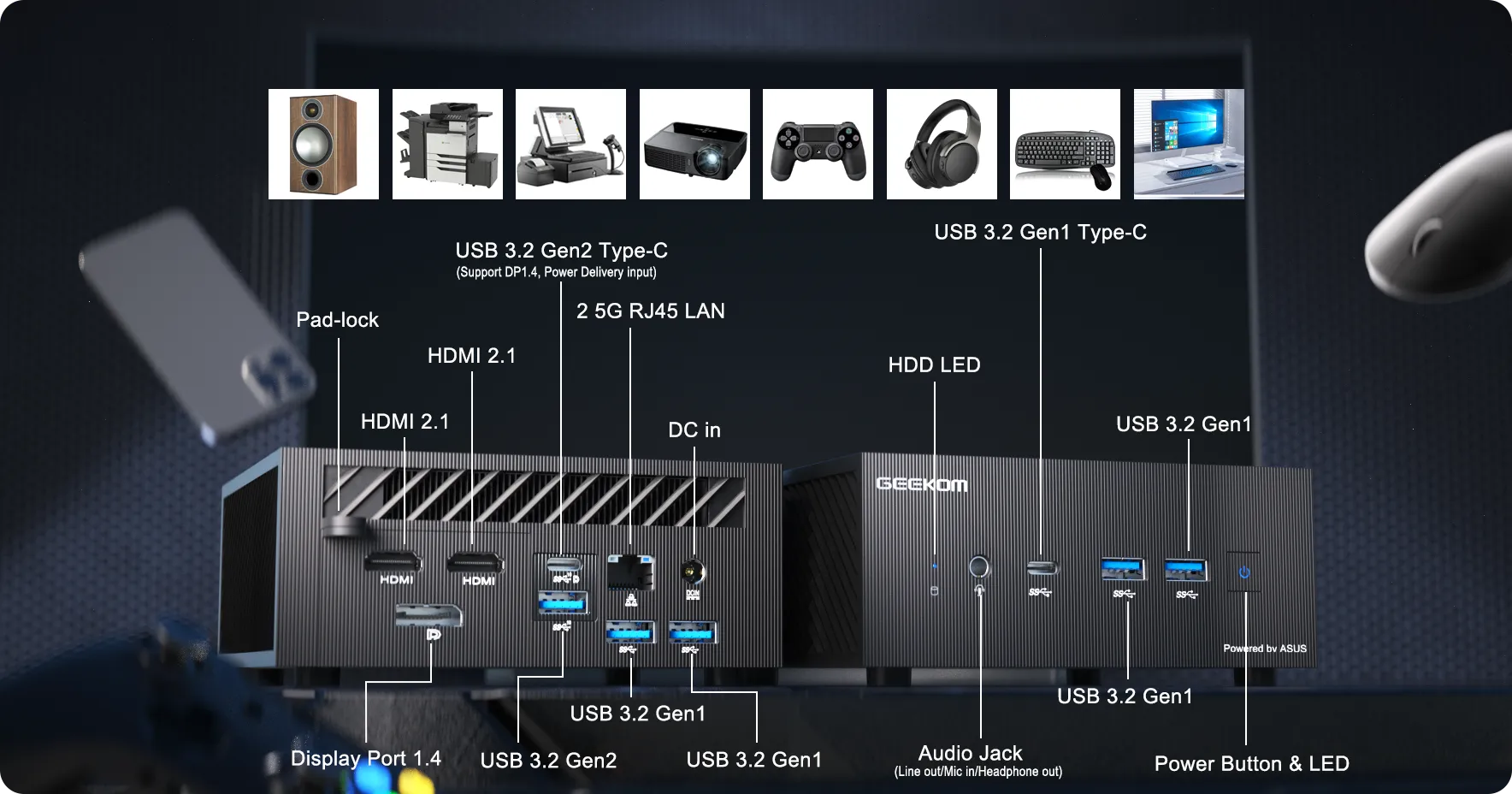

Plenty of ports for enhanced productivity.

As a Mini PC, the GEEKOM AS 5 boasts a large variety of I/O ports, which is not commonly seen in the market, making it easy to connect studio peripherals, display devices, and networks wherever you are to stay productive.

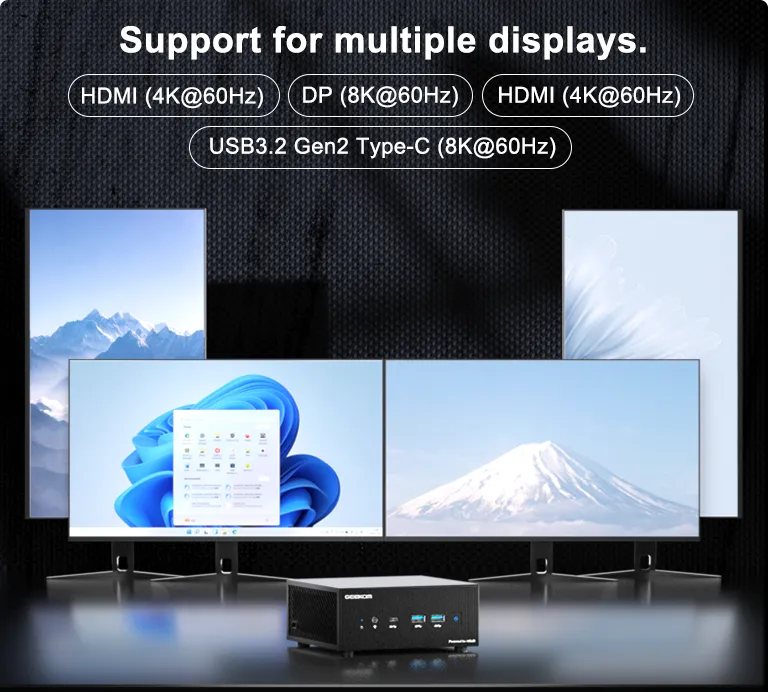

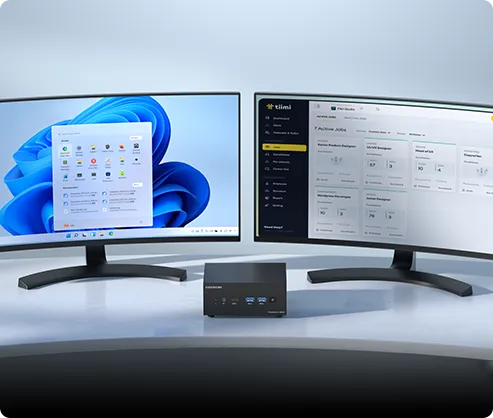

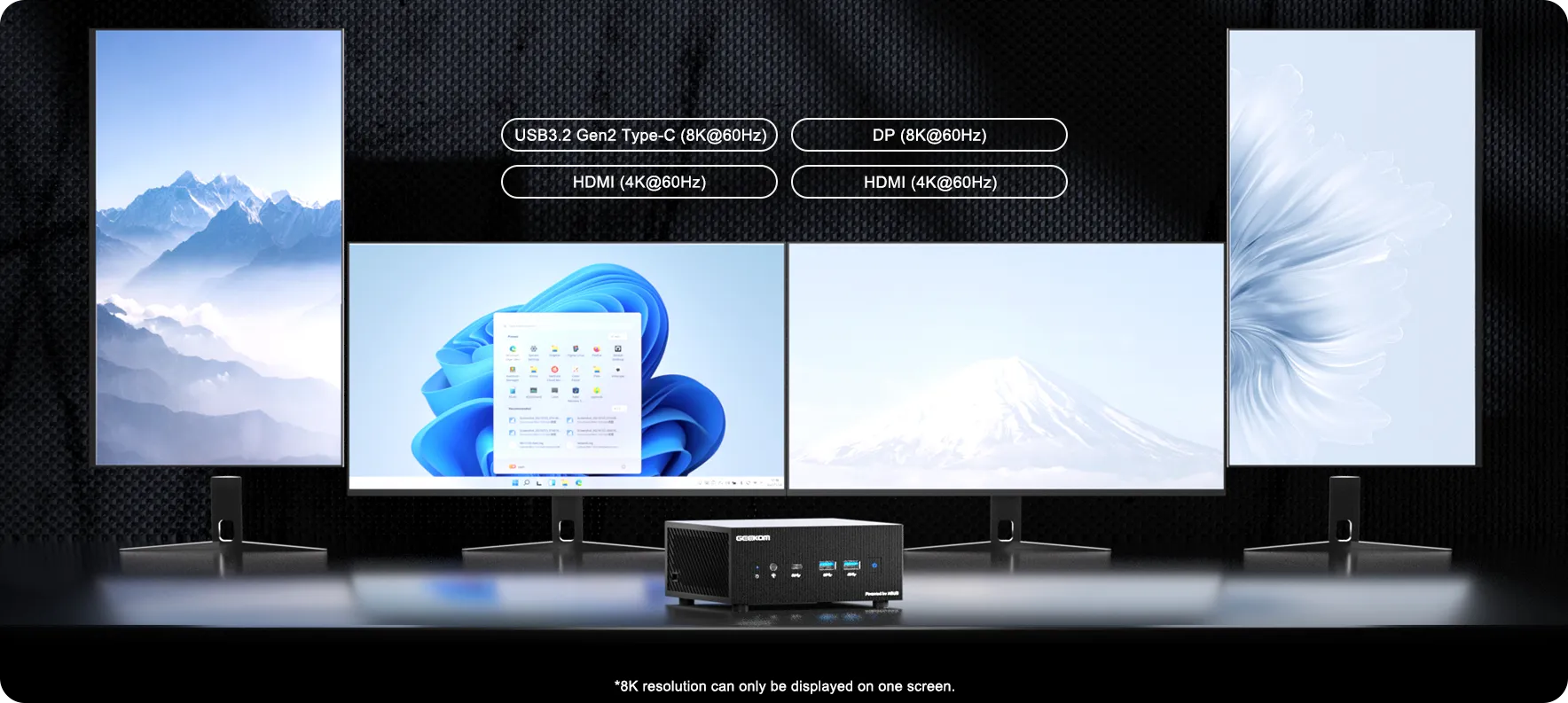

Support for multiple displays.

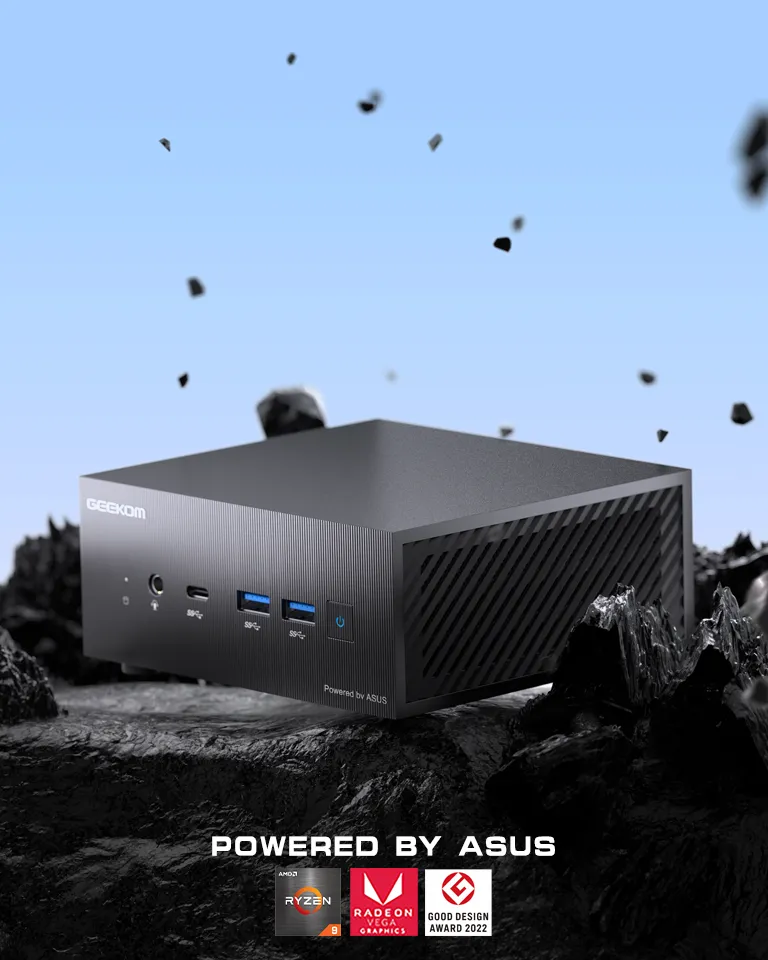

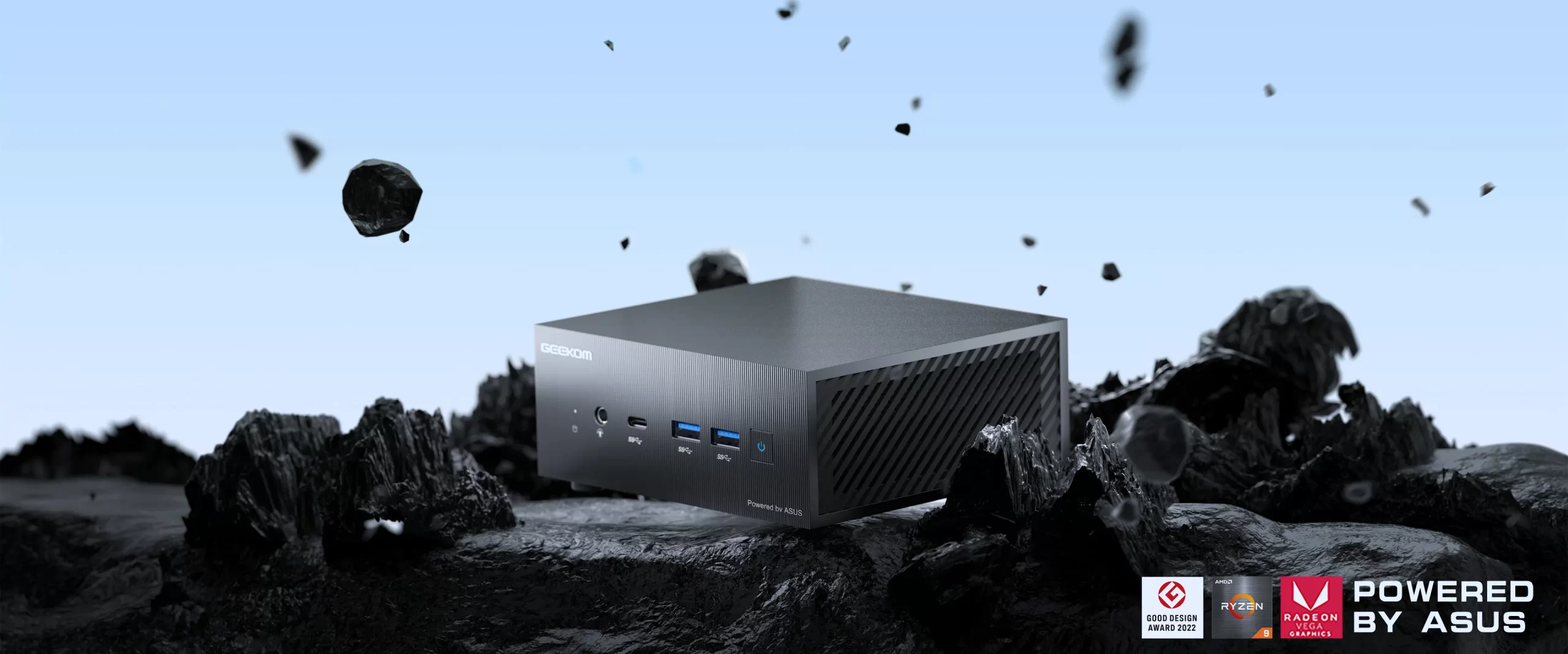

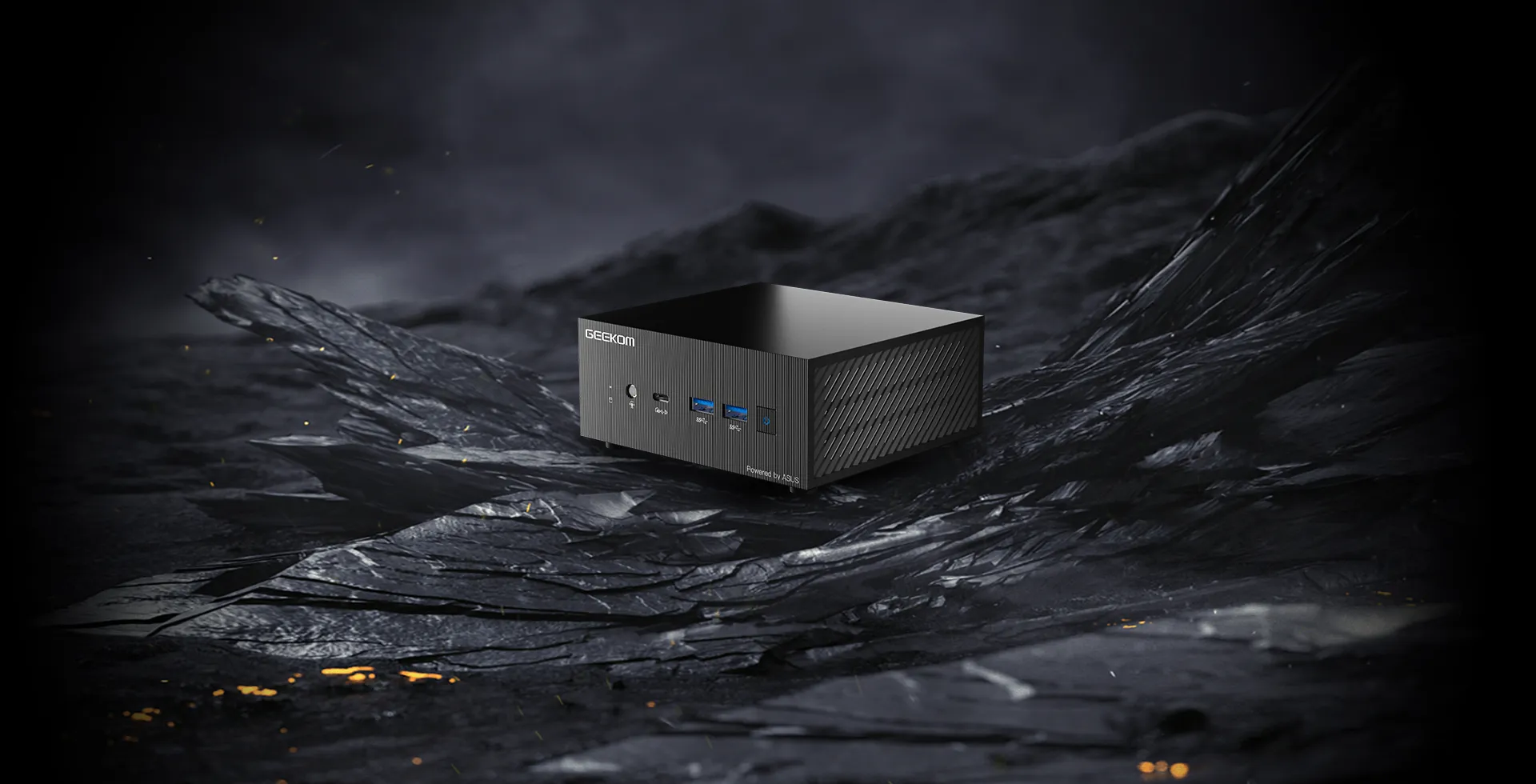

Military-grade durability.

Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 5 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.
High Temperature Test
Altitude
Test
Low Temperature Test
Drop Test
Humidity Test
Vibration Test

Tested to meet the rigorous MIL-STD-810H* standard, the GEEKOM AS 5 can withstand extreme temperatures, altitude, humidity, and frequent drops and vibrations, ensuring reliable performance even in the most challenging environments.

Military-grade durability.
*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.
High Temperature Test
Altitude Test
Low Temperature Test
Drop Test
Humidity Test
Vibration Test

Enhanced Software - MyASUS

AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

System Diagnosis *Hardware diagnostic *Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

Other Functions *WiFi SmartConnect

Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.
*Link to MyASUS Connect your computer to a mobile device.
AI Noise Cancelation *Two-Way AI Noise Cancelation

Filters out unwanted noise from the microphone and incoming audio, ensuring crystal-clear voice communication.

System Diagnosis *Hardware diagnostic *Scenario check-up

Provides brief descriptions to help identify various situations and choose the best diagnostic checkup.

Smart Fan Control *Performance & Quiet modes

Give you the flexibility to choose between using the maximum fan speed during heavy loads and switching to a lower speed for silent operation.

Other Functions *WiFi SmartConnect

Optimize your wireless network.

*TaskFirst Distribute the bandwidth of your internet connection to specific tasks.
*Link to MyASUS Connect your computer to a mobile device.

Specifications


Size 120 x 130 x 58 mm (0.9L)
Weight 0.75 kg
CPU Ryzen™ 9 5900HX (8 Cores, 16 Threads, 16MB Cache, 3.3 GHz~ 4.6 GHz)
cTDP: 35W
Graphics Integrated -AMD Radeon™ Vega 8 Graphics
Memory Dual-channel DDR4-3200MHz SODIMM, supports up to 64GB
Storage 2 x M.2 2280 PCIe Gen 3x4 SSD, supports up to 2TB (*NVMe Only)

1 x 2.5”7mm SATA HDD, supports up to 2TB

Operating System Windows 11 Pro
Bluetooth® Wireless Technology Bluetooth® v5.2
LAN 2.5G LAN (RJ45)
Wireless Network Wi-Fi 6E
Power Supply 20V 6A, 120W Power Adapter

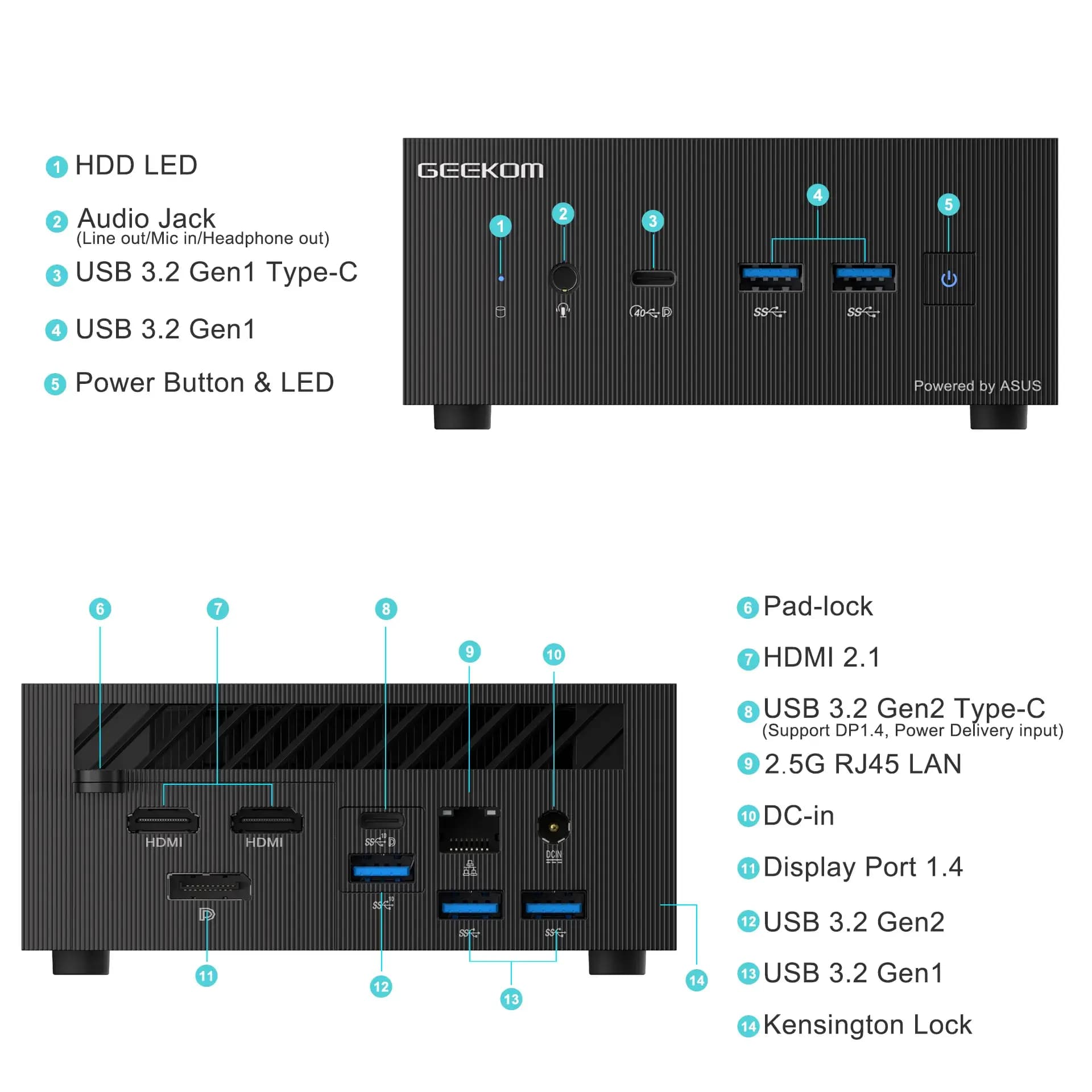

I/O Ports Front I/O 1 x USB 3.2 Gen1 Type-C (Data only)
2 x USB 3.2 Gen1
1 x Audio Jack (Line out/ Mic in/ Headphone out)
Side I/O 1 x Kensington Lock
Rear I/O 1 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type-C (Support DP1.4, 7680 x 4320 @60Hz)
2 x HDMI 2.1 Port (4096 x 2160 @60Hz)
1 x Display Port 1.4 (7680 x 4320 @60Hz)
1 x 2.5G RJ45 LAN
1 x Pad-lock
1 x DC-in

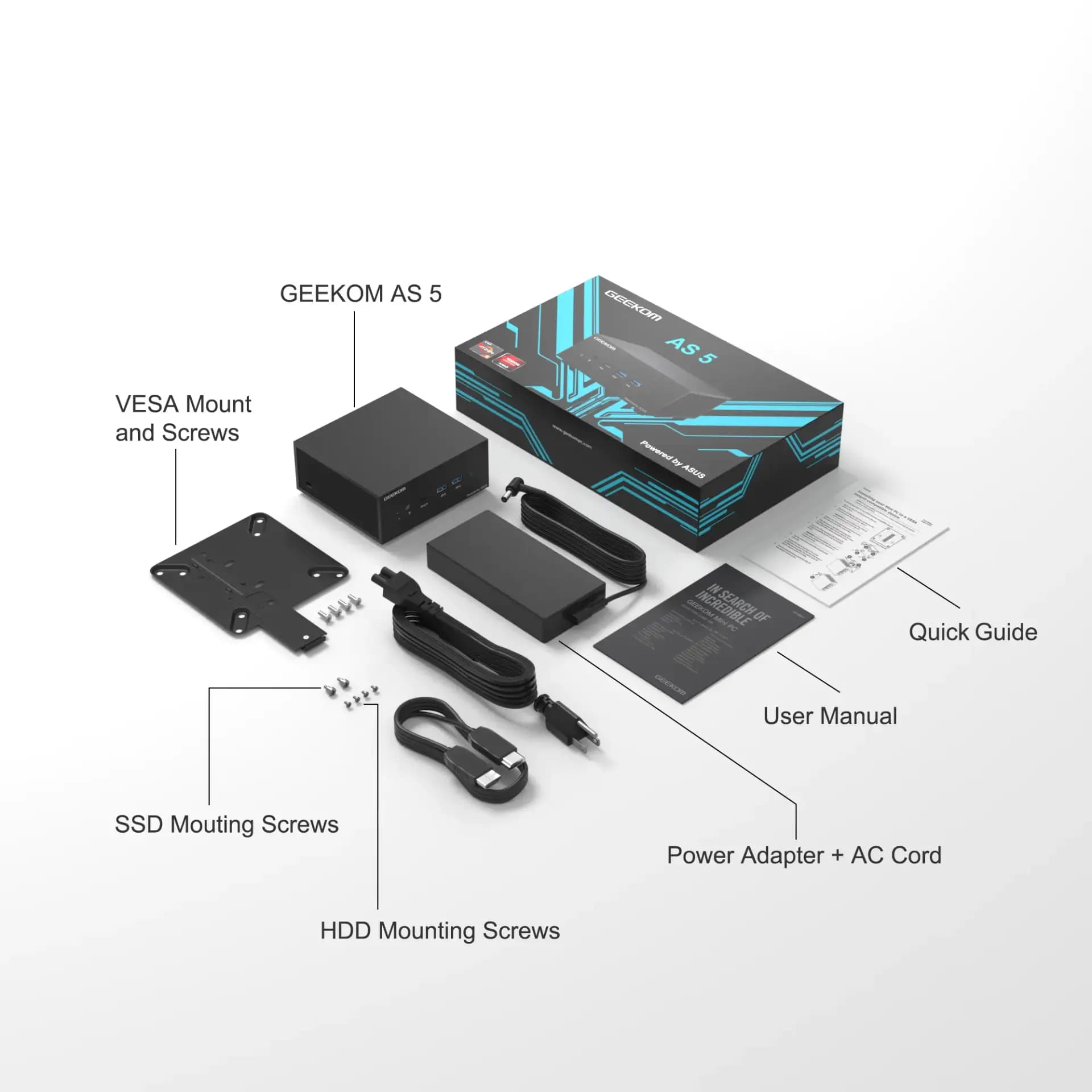

What’s In The Box 1 x AS 5 Mini PC
1 x Power Adapter
1 x VESA Mount ( 2 packs of screws included)
1 x SSD Mounting Screws (2 packs)
1 x HDD Mounting Screws (1 pack)
1 x Qucik Guide
1 x User Manual
